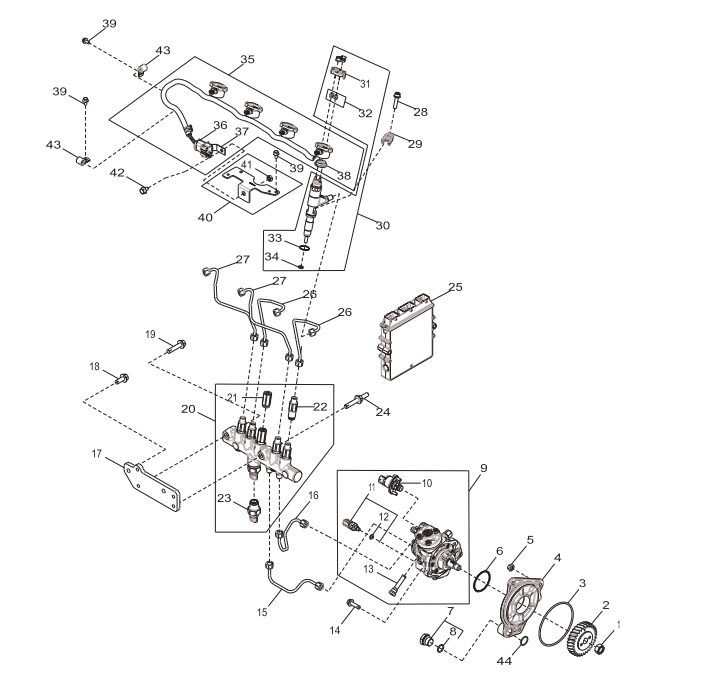

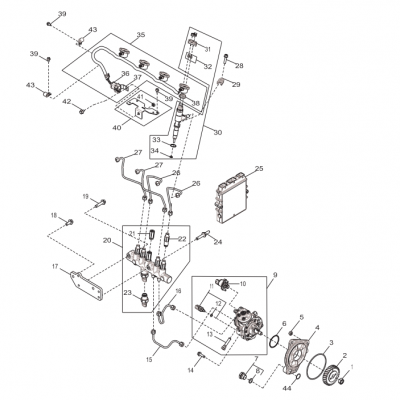

Group 16--1: Fuel Injection System, continued 單元16-1:燃油噴射系統(tǒng)

ItemPartDescriptionQuantityVariationNumber 16KA1 224161 Nut 12 GM46645 Gear 13 GM46644 O-Ring 14 GM46647 Adapter 15 # Flange Nut, M8 36 GM46643 O-Ring 17 360078 Plug, Drain 18 360180 O-Ring, 17.3 X 2.

Item Part Description Quantity Variation Number 16KA 1 224161 Nut 1 2 GM46645 Gear 1 3 GM46644 O-Ring 1 4 GM46647 Adapter 1 5 # Flange Nut, M8 3 6 GM46643 O-Ring 1 7 360078 Plug, Drain 1 8 360180 O-Ring, 17.3 X 2.2 mm 1 9 GM50052 Fuel Injection Pump 1 10 GM77158 Control Valve 1 11 GM46641 Sensor, Fuel Temp 1 12 GM79805 O-Ring 1 13 GM46642 Screen 1 14 # Screw, M8 X 30 2 15 GM88737 Fuel Line 1 16 GM88736 Fuel Line 1 17 GM52524 Bracket 1 18 # Screw, M10 X 25 2 19 # Screw, M10 X 45 1 20 GM52523 Rail 1 21 GM49936 Pressure Relief Valve 1 22 GM46637 Restrictor 4 Item Part Description Quantity Variation Number 16KA 23 GM49988 Sensor 1 24 GM88690 Stud 1 25 GM50042 Engine Controller 1 26 GM50043 Fuel Line 2 27 GM50044 Fuel Line 2 28 GM50059 Screw With Washer 4 29 GM49883 Clamp 4 30 GM88740 Nozzle Kit (includes washer) 4 31 GM50065 Electrical Connector Cap 4 32 GM46621 Nut 8 33 GM46681 O-Ring 4 34 GM49927 Washer, Sealing 4 35 GM52520 Wiring Harness 1 36 GM88672 Elec. Connector Housing 1 37 GM49889 Bracket 1 38 GM49915 Seal 1 39 GM50057 Screw 4 40 GM49924 Bracket 1 41 # Weld Nut, M8 1 42 GM50033 Cap Screw 1 43 223666 Clip 2 44 GM46646 O-Ring 1
