Group 201: Generator and Mounting, continued 第201組:發(fā)電機(jī)和安裝,“GM91650,”“40MDDCA,”“55MDDCB ,”“65MDDCC,&am

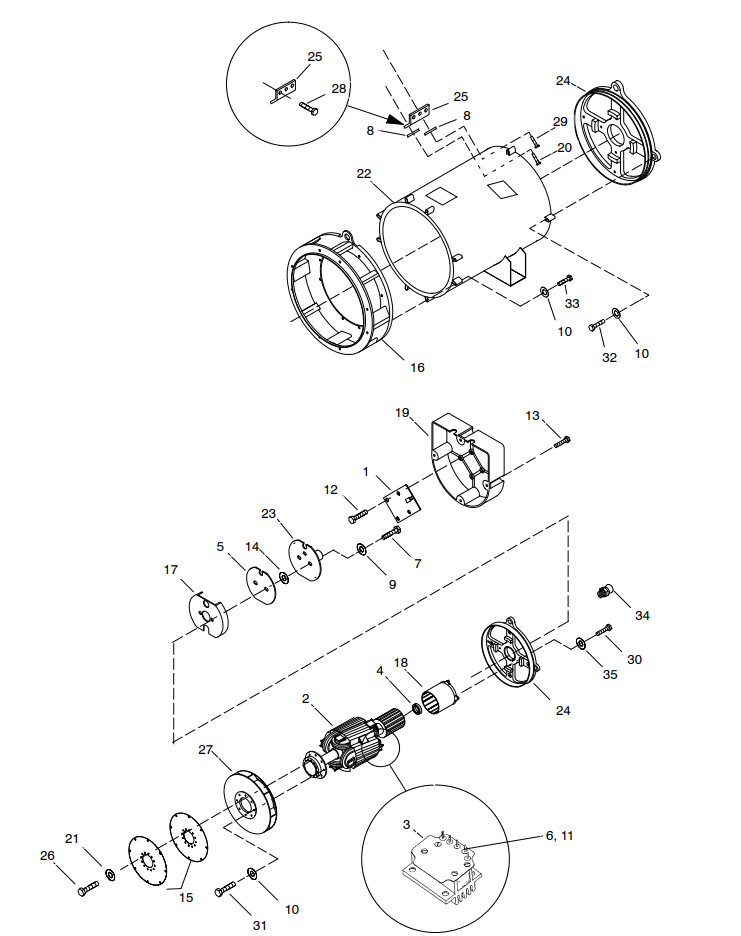

Group 201: Generator and Mounting, continued4UA10 AlternatorsItemPartNumber Description Qty.1 B-257099 PCB assembly, LED, FRII 12 GC94649 Rotor assembly 13 A-354299 Heatsink 14 X-758-9 Bearing, ball 1

Group 201: Generator and Mounting, continued 4UA10 Alternators Item Part Number Description Qty. 1 B-257099 PCB assembly, LED, FRII 1 2 GC94649 Rotor assembly 1 3 A-354299 Heatsink 1 4 X-758-9 Bearing, ball 1 5 GM34505 PCB assembly, photo receiver 1 6 X-101-24 Nut, hex elastic stop, 6-32 5 7 X-117-5 Screw, hex head machine 2 8 X-22-46 Washer, lock, 0.391 ID x 0.975 in. OD 2 9 X-22-9 Washer, lock, 0.20 ID x 0.373 in. OD 2 10 X-25-93 Washer, plain, 0.406 ID x 0.75 in. OD 14 10 290945 Washer, hardened, 0.531 ID x 1.06 in. OD 12 10 257951 Washer, special, 0.562 ID x 1.13 in. OD 12 11 X-283-7 Terminal, ring, male, 22-16 AWG 4 11 X-431-25 Terminal, fast-on, female 4 12 X-6071-1 Screw, Phillips pan head 4 13 X-67-133 Screw, hex washer, thread-forming 3 14 243321 Washer, insulating, 0.195 ID x 0.5 in. 2 15 222881 Disc, drive 4 16 347241 Adapter, generator 1 17 257077 Actuator, magnetic cup 1 18 GC347707 Exciter field assembly 1 19 257258 Cover, FR LED circuit board 1 20 X-791-6 Screw, hex head machine 1 21 X-801-3 Washer, hardened, 0.406 ID x 0.812 in. 12 22 GC94675 Stator assembly 1 23 257850 Insulator 1 24 347236 Bracket, end 1 25 257978 Connector, lead 1 26 270158 Screw, cylinder head, 3/8-16 x1 1/4 12 27 257855 Fan, alternator 1 28 X-6238-5 Screw, hex cap 3 29 X-6238-11 Screw, hex cap 1 30 X-6238-17 Screw, hex cap 4 31 X-6238-11 Screw, hex cap 8 32 X-129-25 Screw, hex cap 4 33 X-129-25 Screw, hex cap 8 34 347119 Fitting, grease 1 35 X-801-3 Washer, hardened, 0.406 ID x 0.812 in. 4 Alternator Description Alternator Assembly 4UA10 GC94676 4UA10 w/varish overcoat GM94692
